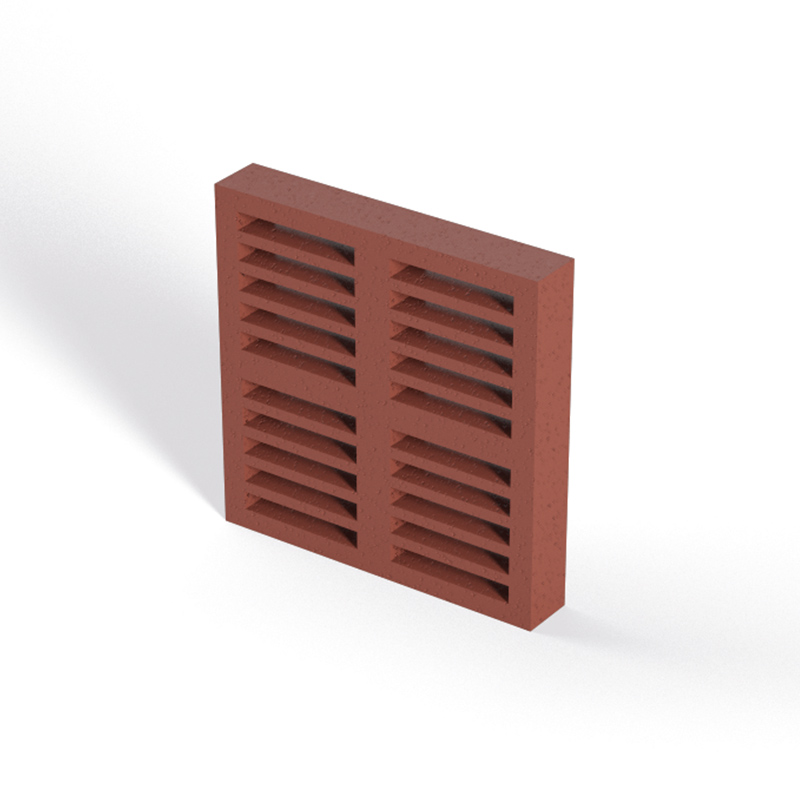

ZZ® 682 Air Transfer Grille square
For large applications, such as doors or technical equipment areas, several ZZ® fire protection grilles can be combined.
System component information
| Name | ZZ® 682 Air Transfer Grille square |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | Länge [mm] | Art. no. | PU |
|---|---|---|---|
| ZZ® 682 Air Transfer Grill / 93.186.20 | 93 | B16N00-0258 B16N00-0259 | 1 1 |
| ZZ® 682 Air Transfer Grill / 150.300.20 | 150 | B16N00-0262 | 1 |
| ZZ® 682 Air Transfer Grill / 150.200.20 | 150 | B16N00-0260 B16N00-0261 | 1 1 |
| Designation | Breite [mm] | Art. no. | PU |
|---|---|---|---|
| ZZ® 682 Air Transfer Grill / 93.93.20 | 93 | B16N00-0258 | 1 |
| ZZ® 682 Air Transfer Grill / 150.150.20 | 150 | B16N00-0260 | 1 |
| ZZ® 682 Air Transfer Grill / 93.186.20 | 186 | B16N00-0259 | 1 |
| ZZ® 682 Air Transfer Grill / 150.200.20 | 200 | B16N00-0261 | 1 |
| ZZ® 682 Air Transfer Grill / 150.300.20 | 300 | B16N00-0262 | 1 |
Detailed information
- Downloads
- Description
For large applications, such as doors or technical equipment areas, several ZZ® fire protection grilles can be combined.
- Additional Information
Depth [mm] 20 Storage temperature 5 °C – 30 °C
