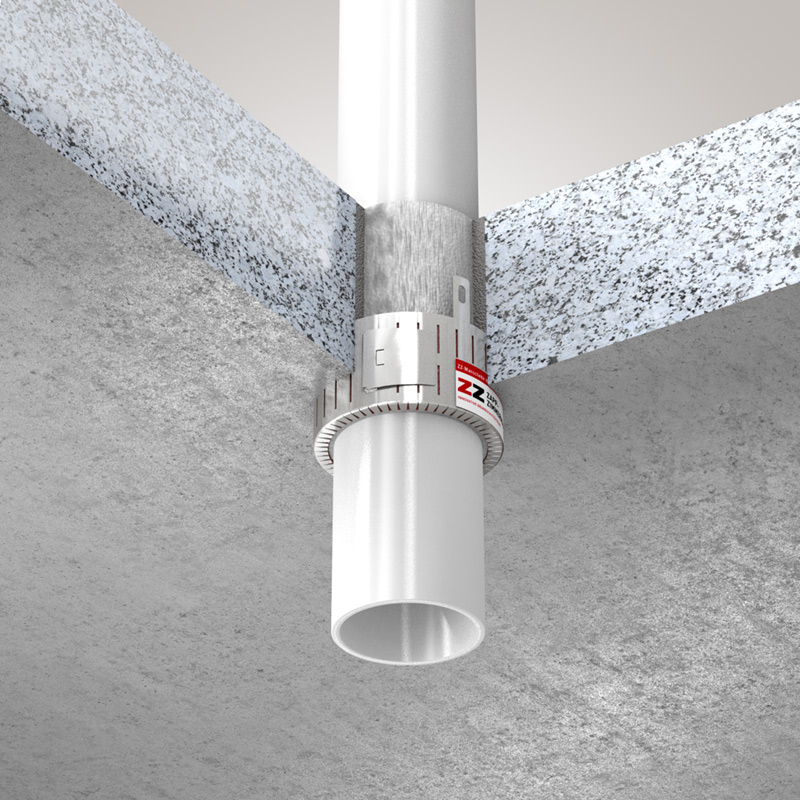

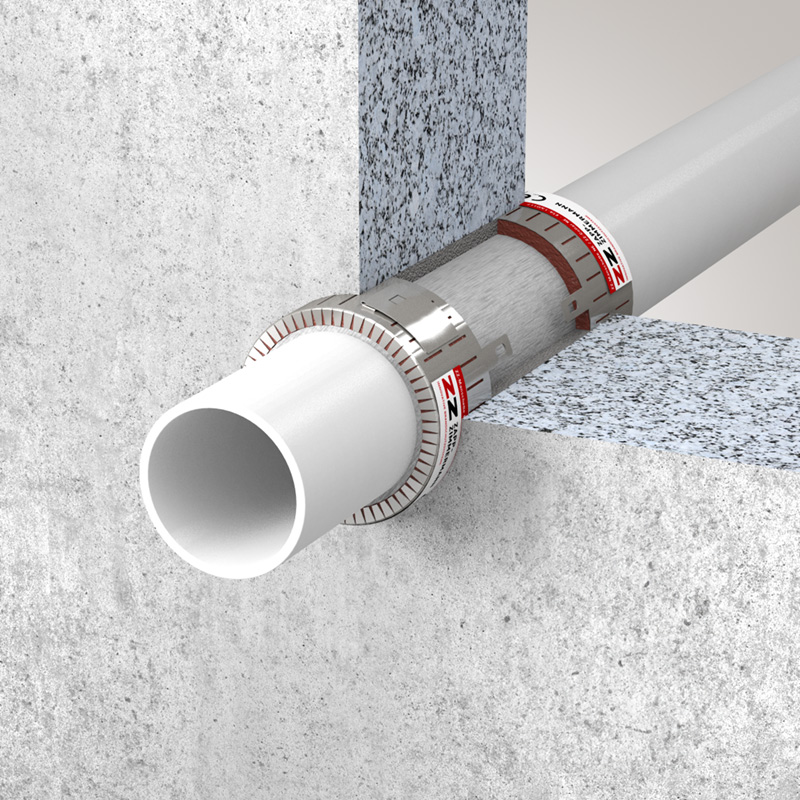

System No. C-AJ-2922 Nonmetallic pipe in solid wall or floor
- PVC, CPVC, ABS, PEX Pipes and Nonmetallic conduit+ up to 4 in. diameter
- F-Rating: 2 h; T-Rating: 2 h
- Max. diameter of opening is 8 in.
- Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
System information
| Test norm | UL 1479 |
| Approval Number | C-AJ-2922 |
| Seal type | Pipe penetration seal |
System components
| Designation | Art. no. | PU | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ZZ® 460 Fire Protection Collar show variants
| ||||||||||||||||||||||
Detailed information
- Downloads
- Description
- PVC, CPVC, ABS, PEX Pipes and Nonmetallic conduit+ up to 4 in. diameter
- F-Rating: 2 h; T-Rating: 2 h
- Max. diameter of opening is 8 in.
- Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
