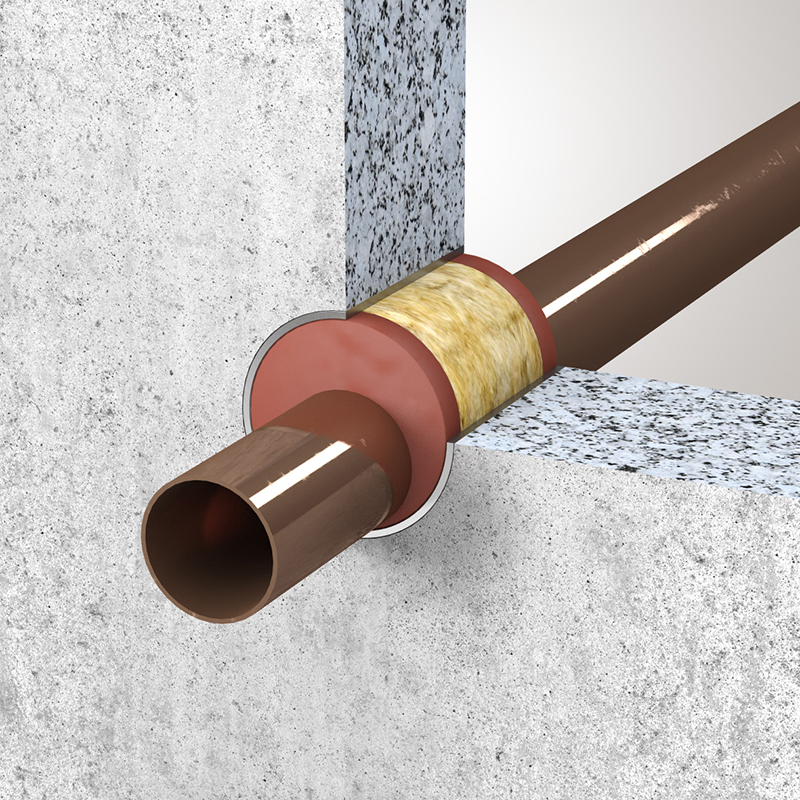

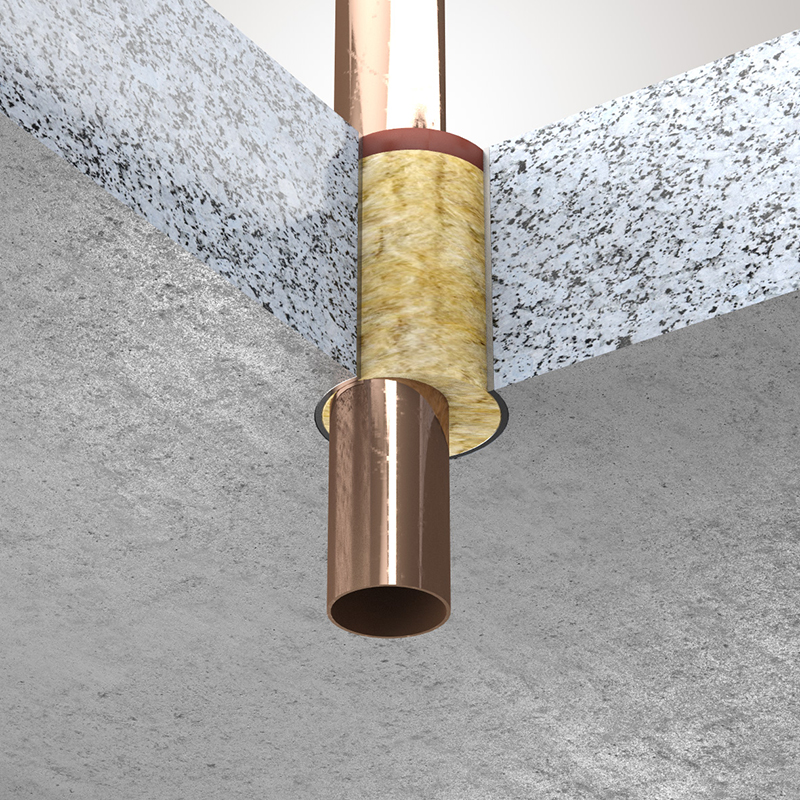

System No. C-AJ-1642 Metallic pipe in solid wall or floor

  • Copper pipes, steel pipes, iron pipes or steel conduits up to 4 in. diameter
  • F-Rating: 2 h; T-Rating: 1/4 h
  • Max. diameter of opening is 5 in.
  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
  • Annular space: Point contact to max. 2-1/4 in.
  • Optional: Steel sleeve grouted into floor or wall
Test norm UL 1479
Approval Number C-AJ-1642
Seal type Pipe penetration seal

System components

DesignationArt. no.PU
ZZ® 365 Fire Protection SealantB15V12-00011

Detailed information

Downloads
  • Listing System No. C-AJ-1642
Description

  • Copper pipes, steel pipes, iron pipes or steel conduits up to 4 in. diameter
  • F-Rating: 2 h; T-Rating: 1/4 h
  • Max. diameter of opening is 5 in.
  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
  • Annular space: Point contact to max. 2-1/4 in.
  • Optional: Steel sleeve grouted into floor or wall
