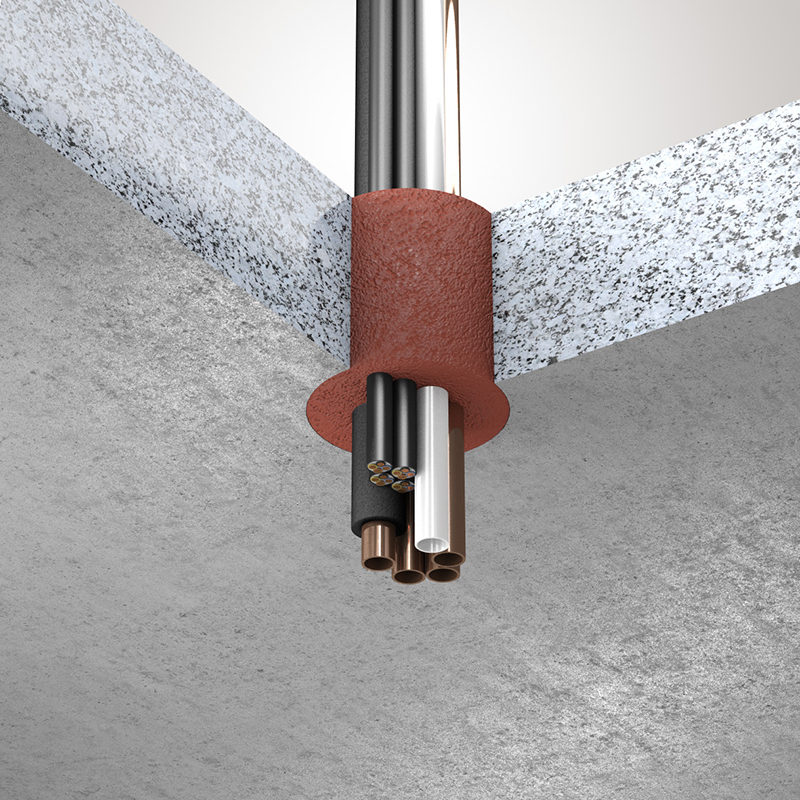

System No. C-AJ-8235 Mixed penetration seal (AC lineset) in solid wall or floor
- Up to four metallic pipes optionally AB/PVC insulated and one PVC/CPVC pipe each up to 1 in. diameter, four cables
- 4 h and 2 h
- Maximum diameter of opening is 6 in.
- Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
- Annular space: point contact to max. 2 in
System information
| Test norm | UL 1479 |
| Approval Number | C-AJ-8235 |
| Seal type | Mixed penetration seal |
System components
| Designation | Art. no. | PU |
|---|---|---|
| ZZ® 360 Fire Protection Foam, 6 pc.-set | B15N01-0134 | 1 |
Detailed information
- Downloads
- Description
- Up to four metallic pipes optionally AB/PVC insulated and one PVC/CPVC pipe each up to 1 in. diameter, four cables
- 4 h and 2 h
- Maximum diameter of opening is 6 in.
- Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
- Annular space: point contact to max. 2 in
