Approved installations

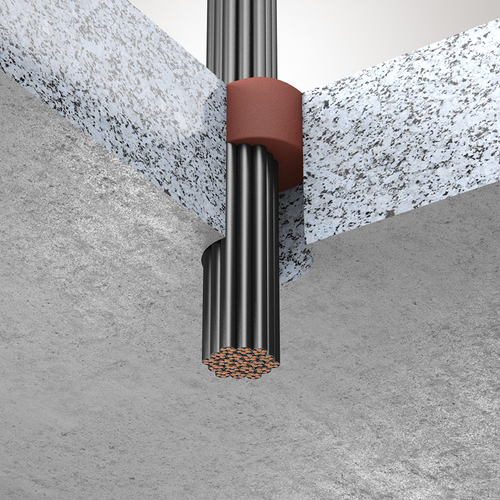

  1. System No. C-AJ-3329 Cables in solid wall or floor

    C-AJ-3329
    • Power and control cables, telecommunication cables, optical fibre cables
    • F-Rating: 2 h; T-Rating: ½ h
    • Max. 60% cable fill in opening of max. 5 in. diameter
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
    • Optional: Steel sleeve grouted into floor or wall

    View Detail

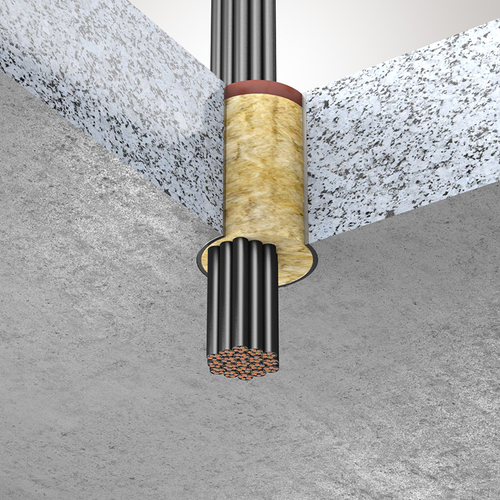

  2. System No. C-AJ-3330 Cables in solid wall or floor

    C-AJ-3330
    • Power and control cables, telecommunication cables, optical fibre cables
    • F-Rating: 2 h; T-Rating: ½ h
    • Maximum 45% cable fill in opening of max. 4 in. diameter
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
    • Annular space: Point contact to max. 1-1/4 in.
    • Optional: Steel sleeve grouted into floor or wall

    View Detail

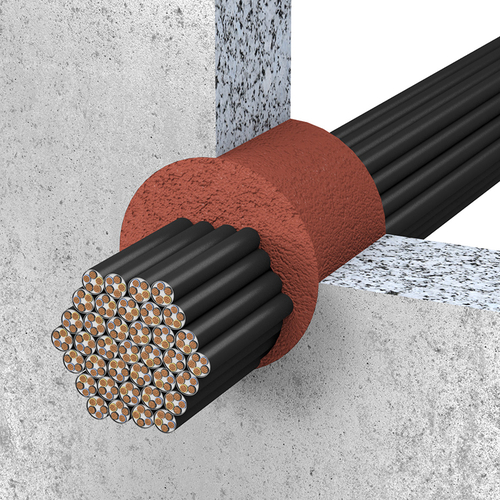

  3. System No. C-AJ-3331 Cables in solid wall or floor

    C-AJ-3331
    • Power and control cables, telecommunication cables, optical fibre cables
    • F-Rating: 2 h; T-Rating: ½ h
    • Max. 45% cable fill in opening of max. 8 in. diameter
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
    • Annular space: Point contact to max. 4 in.
    • Optional: Steel sleeve grouted into floor or wall

    View Detail

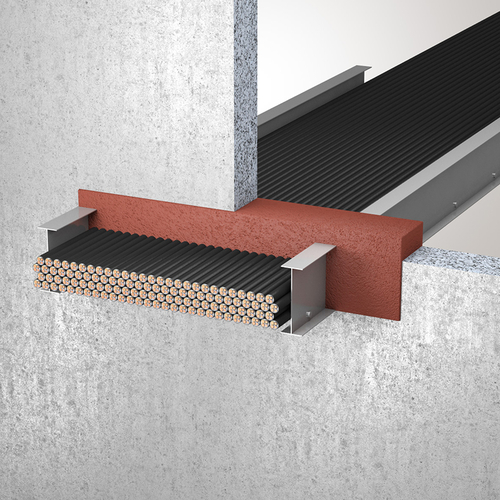

  4. System No. C-AJ-4104 Cable tray with cables in solid wall or floor

    C-AJ-4104
    • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill
    • F-Rating: 2 h; T-Rating: 1 h
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks

    Only ZZ® 360 Fire Protection Foam

    • Max. opening size: 224 in.² with a max. dimension of 32 in.
    • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal)

    In combination with ZZ® 260 Fire Protection Block

    • Max. opening size: 384 in.² with a max dimension of 32 in.
    • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal) to periphery of opening or foam/block interface, rest of the opening has to be sealed with ZZ® 260 Fire Protection Block

    View Detail

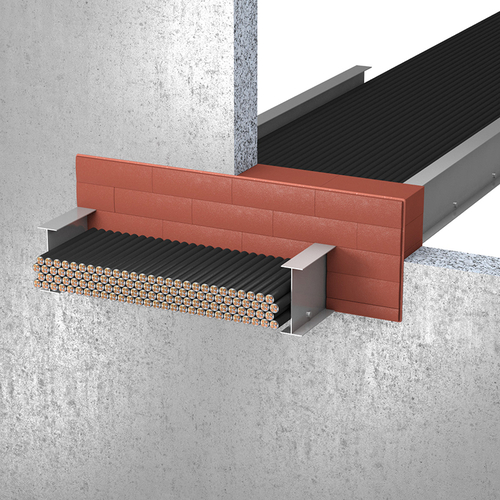

  5. System No. C-AJ-4105 Cable tray with cables in solid wall or floor

    C-AJ-4105
    • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill
    • F-Rating: 2 h; T-Rating: 0 h
    • Max. opening size: 384 in.² with a max. dimension of 32 in.
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
    • Annular space: point contact to max. 8 in.
    • ZZ® 365 Fire Protection Sealant to be filled between cables, in voids between cables and ZZ® 260 Fire Protection Block and between periphery of opening and ZZ® 260 Fire Protection Block

    View Detail

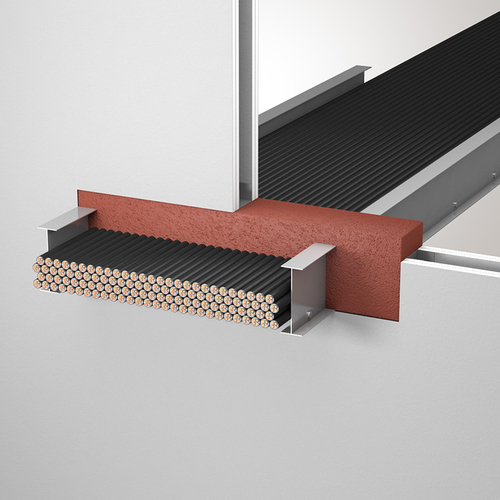

  6. System No. W-L-4085 Cable tray with cables in drywall

    W-L-4085
    • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill
    • F-Rating: 2 h; T-Rating: 1 h
    • Fire rated gypsum board/ steel stud wall according to U400, V400 or W400 Series with minimum 2-1/2 in. wide studs
    • Only ZZ® 360 Fire Protection Foam
    • Max. opening size: 224 in.² with a max. dimension of 32 in.
    • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal)
    • In combination with ZZ® 260 Fire Protection Block
    • Max. opening size: 384 in.² with a max. dimension of 32 in.
    • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal) to periphery of opening or foam/block interface, rest of the opening has to be sealed with ZZ® 260 Fire Protection Block

    View Detail
