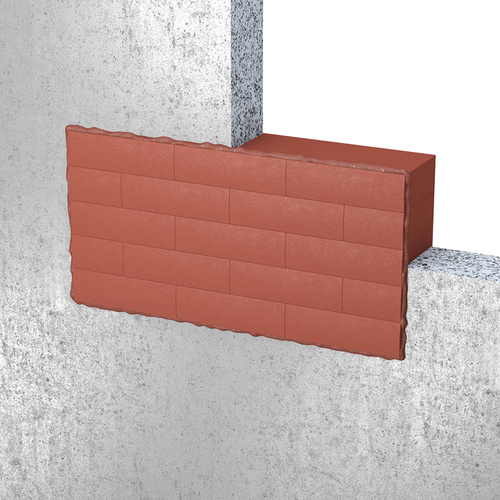

1. System No. C-AJ-0150 Blank opening in solid wall or floor

    C-AJ-0150
    • F-Rating: 2 h; T-Rating: 2 h
    • Max. opening size: 384 in.² with a max. dimension of 32 in.
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
    • ZZ® 365 Fire Protection Sealant or ZZ® 360 Fire Protection Foam to be filled between ZZ® 260 Fire Protection Block and periphery of opening

    View Detail

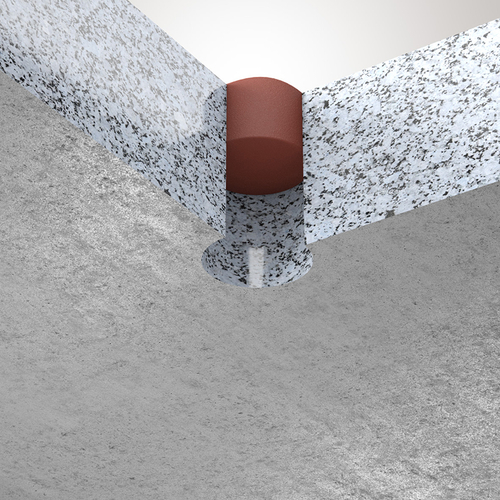

  2. System No. C-AJ-0151 Blank opening in solid wall or floor

    C-AJ-0151
    • F-Rating: 2 h; T-Rating: 2 h
    • Max. opening size: 5 in. diameter
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
    • Optional: Steel sleeve grouted into floor or wall

    View Detail

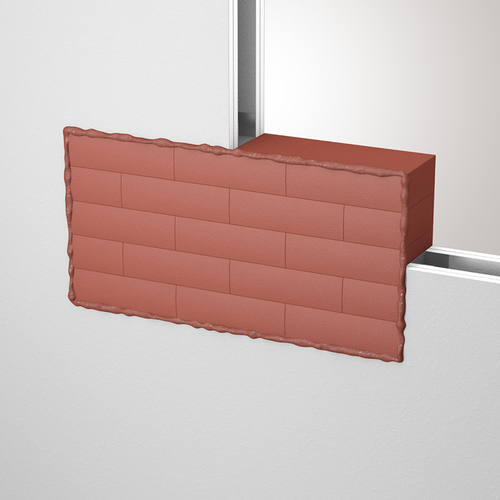

  3. System No. W-L-0046 Blank opening in drywall

    W-L-0046
    • F-Rating: 2 h; T-Rating: 2 h
    • Max. opening size: 384 in.² with a max. dimension of 32 in.
    • Fire rated gypsum board/ steel stud wall according to U400, V400 or W400 Series with minimum 2-1/2 in. wide studs
    • ZZ® 360 Fire Protection Foam to be filled between ZZ® 260 Fire Protection Block and periphery of opening

    View Detail
