ZZ® 630 Fire Protection Box - 3 sided, 60 mm

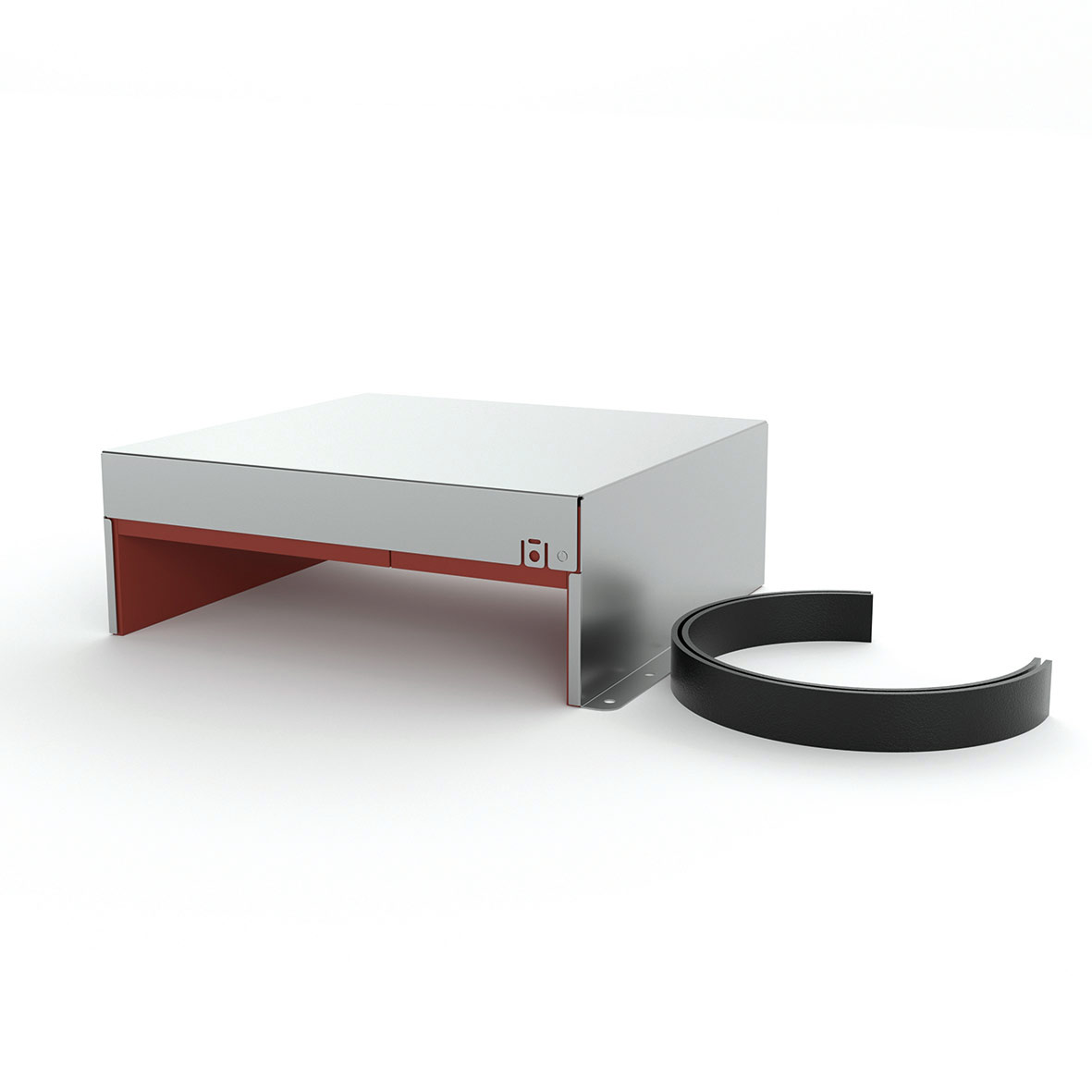

The ZZ® 630 Fire Protection Box consists of a stainless steel sheet housing with factory-lined fire protection inserts. The modular dimensions are matched to the common dimensions of cable support systems.
System component information
| Name | ZZ® 630 Fire Protection Box - 3 sided, 60 mm |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | Breite [mm] | Art. no. | PU |
|---|---|---|---|
| ZZ® 630-100-3 Fire Protection Box | 100 | B16B01-0007 | 1 |
| ZZ® 630-200-3 Fire Protection Box | 200 | B16B01-0008 | 1 |
| ZZ® 630-300-3 Fire Protection Box | 300 | B16B01-0009 | 1 |
| ZZ® 630-400-3 Fire Protection Box | 400 | B16B01-0010 | 1 |
| ZZ® 630-500-3 Fire Protection Box | 500 | B16B01-0011 | 1 |
| ZZ® 630-600-3 Fire Protection Box | 600 | B16B01-0012 | 1 |
Detailed information
- Downloads
- Description
- Description:
The ZZ® 630 Fire Protection Box consists of a stainless steel sheet housing with factory-lined fire protection inserts. The modular dimensions are matched to the common dimensions of cable support systems.
- Application areas: Mixed penetration seal or cable penetration seal up to EI 90 /E 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for electrical cables, telecommunication cables and optical fibre cables, conduits, as well as specific pipes and conduits.
- Description:
The ZZ® 630 Fire Protection Box consists of a stainless steel sheet housing with factory-lined fire protection inserts. The modular dimensions are matched to the common dimensions of cable support systems.
- Additional Information
Product Information The ZZ® 630 fire protection box is supplied including the required length of ZZ® 452-30 fire protection tape, for installation on building site.
