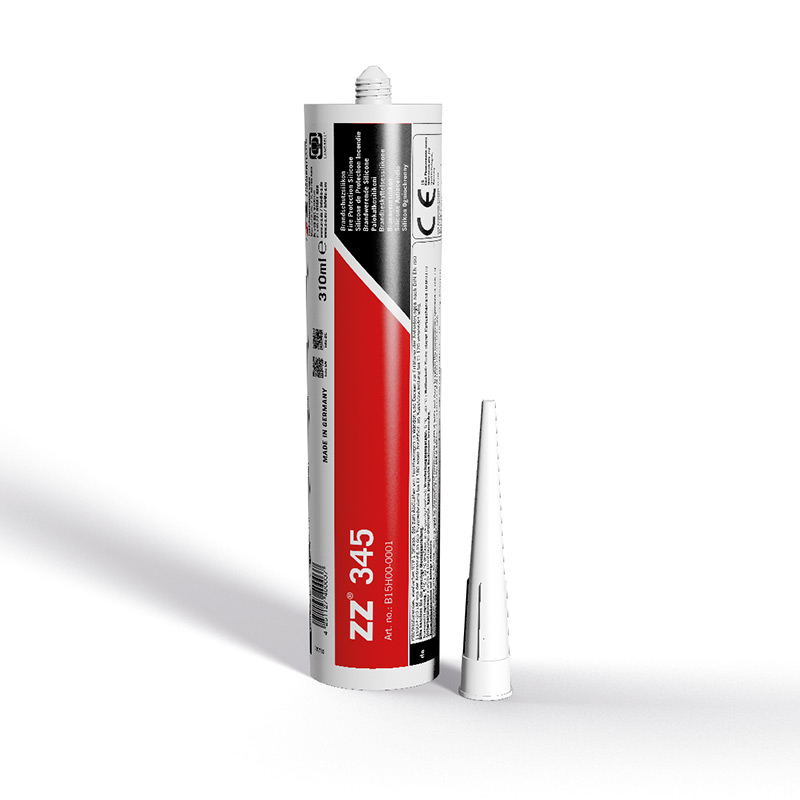

ZZ® 345-C Fire Protection Silicone
The ZZ® 345-C Fire Protection Silicone is characterised by excellent processing qualities and a high level of stability. It ZZ® 345 can be used as cable penetration seal and for fire protection sealing of joints with minor and significant movement capability
Accessory information
| Name | ZZ® 345-C Fire Protection Silicone |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | Art. no. | PU |
|---|---|---|
| ZZ® 345-C Fire Protection Silicone | B15H00-0001 | 1 |
Detailed information
- Downloads
- Description
- Approval:
- ETA-12/0118 and ETA-13/0123
- Reaction to fire in accordance with DIN EN 13501-1:
- Class E
- Reaction to fire:
- DIN 4102-B1 in accordance with P-BWU03-I-16.5.352
- Classification in accordance with DIN EN ISO 11600:
- ISO 11600-F-20 LM
- Testing the fire protection properties under environmental influences:
- Use category x (product for use in outdoor areas, as well as indoor areas, also in areas with exposure to weather)
- Colour:
- Cement grey
- Content:
- 310 ml cartridge, 580 ml tubular bag
- Application temperature:
- + 5 °C to + 30 °C
- Storage:
- + 5 °C to + 30 °C (store dry and only in the original containers)
- Skin formation time:
- Approx. 10 minutes (at 23 °C and 50 % rel. humidity)
- Viscosity:
- Pasty, non-sag
- Hardening:
- Approx. 2 mm in 24 hours (at 23 °C and 50 % rel. humidity)
- Chemical basis:
- RTV-1 silicone (oxime system) with halogen-free fire protection agents
- Storage stability:
- 12 months at 23 °C / 50 % rel. humidity, shelf life, see imprint on the container
- Additional Information
Packaging units 1 viscosity Pasty, non-sag Resistance to static differential pressure Pmax = 9800 Pa Prüfnorm: In Anlehnung an EN 12211 (Probekörperabmessungen 100 x 100 x 150 [mm], 2 x 15 mm Verfüllung beidseitig, geprüft ohne Installationen) Storage temperature 5 °C – 30 °C
