ZZ® 330 Fire Protection Foam Starter-Kit
In addition to its outstanding technical fire safety properties, ZZ® 330 Fire Protection Foam Starter-Kit (ZZ-Fire Protection Foam 2K NE) is particularly characterised by its easy processing. It can be used as a mixed penetration seal (EI 90), as well as a pure cable penetration seal (EI 60/ EI 90/ EI 120). The optimal match between the beginning of the reaction and hardening enables sufficiently long work interruptions for the user, as well as fast work progress. Thanks to the high viscosity, the user does not have to deal with foam running out of the penetration seal. After hardening, the permanently elastic structure of the penetration seal enables easy retroactive-installation.
Accessory information
| Name | ZZ® 330 Fire Protection Foam Starter-Kit |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | Art. no. | PU |
|---|---|---|
| ZZ® 330 Fire Protection Foam Starter-Kit | B16N00-0125 | 1 |
Detailed information
- Downloads
- Additional Information

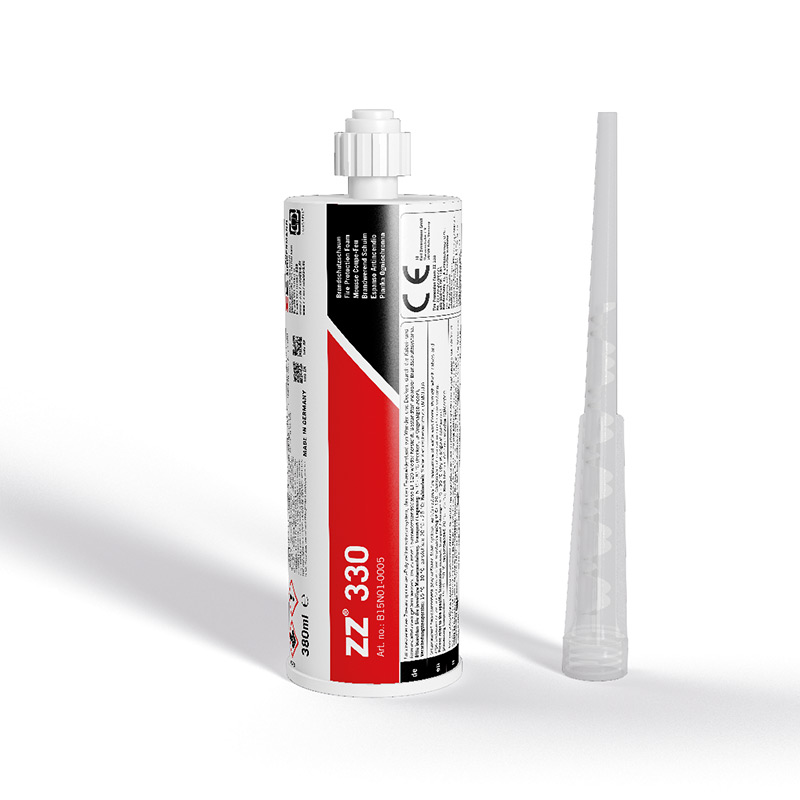

Product Information 1 x 380 ml cartridge, 1 x Cartridge Gun EasyMax 2K, incl. accessories
Packaging units 1 Content 12.85 fl. oz coating materials Plastic dispersion paint, alkyd resin paint, polyurethane acrylic paint, epoxy resin lacquer Gaseous chemicals Short-term storage above concentrated ammonium hydroxide solution Solvents/Oils Trichloroethylene, xylene, acetone, white spirit, butyl acetate, butanol, EL heating oil Compression hardness Cv (40%) = 18kPa Test standard: DIN EN ISO 3386-1 Classification of the reaction to fire according to DIN EN 13501-1 Class E Building material class DIN 4102-B2 Thermal stress Continuous contact or ambient temperature: ≤ 80 °C Indoor air hygiene Anforderungen nach AgBB-Schema 2015 werden erfüllt Prüfnormen: prEN 16516, ISO 16000-3, ISO 16000-6, ISO 16000-9 Surface resistivity R0 = 2 x 109 Ω Test standard: BGR 132:2003 (2.6), DIN IEC 60167 (For requests for installation in hazardous areas please contact ZAPP-ZIMMERMANN GmbH) airborne sound insulation Dn,e,w(C;Ctr) = 66 (-1; -7) dB Rw(C;Ctr) = 47 (-1; -7) dB Prüfnorm: EN ISO 717-1 (Probekörperabmessungen 350 x 350 x 170 [mm], geprüft ohne Installationen), Dn,e,w(C;Ctr) = 62 (-1; -4) dB Rw(C;Ctr) = 43 (-1; -4) dB; Prüfnorm: EN ISO 717-1 (Probekörperabmessungen 350 x 350 x 120 [mm], geprüft ohne Installationen) Thermal conductivity λ = 0,088 W/(m*K); R = 0,279 m²*K/W; Prüfnorm: DIN EN 12667 Resistance to static differential pressure Pmax = 8800 Pa Prüfnorm: In Anlehnung an EN 12211 (Probekörperabmessungen 360 x 360 x 144 [mm], geprüft ohne Installationen), Pmax = 10000 Pa Prüfnorm: In Anlehnung an EN 12211 (Probekörperabmessungen 350 x 350 x 200 [mm], geprüft ohne Installationen) Air permeability Q600≤ 0,08 m³/(h*m²) (bei 600 Pa Differenzdruck konnte bei einer Messgenauigkeit von 0,01 m³/h keine Luftdurchlässigkeit gemessen werden) Prüfnorm: EN 1026 (Probekörperabmessungen 350 x 350 x 200 [mm], geprüft ohne Installatio, Q50 = 0,39 m³/(h*m²) Prüfnorm: EN 1026 (Probekörperabmessungen 360 x 360 x 144 [mm], geprüft ohne Installationen) Expansion ratio 1,6-fach bis 4,5-fach Geprüft an Proben bei 450 °C über 25 Minuten mit Auflast. Der Auf-schäumfaktor ist ein Laborkennwert. Das Aufschäumverhalten im Einbauzustand hängt von den vorhandenen Randbedingungen ab. Expansion pressure No expansion pressure measurable Bulk density ρ ≥ 215 kg/ Cutability After approx. 90 seconds (at 72 °F /22 °C material temperature and ambient temperature) Work interruption approx. 50 seconds (at 22 °C material temperature and ambient temperature) The specifications vary depending on the material and ambient temperature. Foam yield Up to 2.1 litres (at 22 °C material temperature and ambient temperature) Application temperature 59 °F to 86 °F (15 °C to 30 °C), recommended: 68 °F – 77 °F (20 °C to 25 °C) Transport / storage dry in original containers Storage temperature 5 °C – 30 °C storage stability 12 Monate bei 23 °C/ 50 % rLF, Mindesthaltbarkeitsdatum s. Aufdruck Kartusche safety instructions Please refer to the safety data sheet.
